Description
Expanding collets range from 3/8″ to 1.1/4″ (10 to 32mm) Collets are placed in bore of bearing or bush, than expanded with the actuator pin so that lips of collet secure on the bearing or bushs radius surface.
Use slide hammer with collets to extract bearing or bushing.

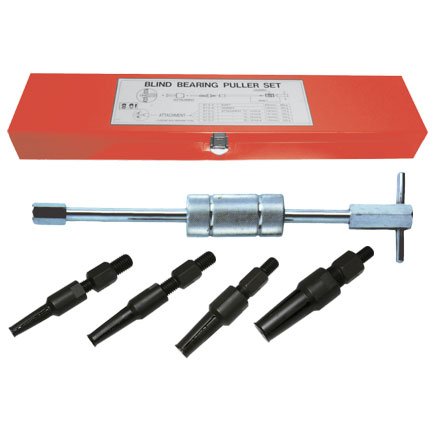

Blind Hole Bearing Puller Set (Available Separately):
| Item No. | Description | Length |
|---|---|---|
| SP913-A | Slide Hammer Shaft 1/2″ UNC Female | 394mm |
| SP913-B | Hammer Weight 2 lbs (900g) | 100mm |
| SP913-C | 3/8″ to 9/16″ (10 to 14mm) Collet | 127mm |
| SP913-D | 9/16″ to 3/4″ (14 to 19mm) Collet | 136mm |
| SP913-E | 3/4″ to 1″ (19 to 25mm) Collet | 136mm |
| SP913-F | 1″ to 1.1/4″ (25 to 32mm) Collet | 146mm |
